Product Specifications

SEAMLESS INTEGRATION

Slide your DishDrawer™ Dishwasher into an existing kitchen space or integrate into kitchen cabinetry, for a seamless look whilst delivering superior dish care.

EASE OF USE

DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.

INDEPENDENT WASH

With the ability to use both drawers independently and select different wash programs the DishDrawer™ Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.

TRUE HALF LOAD

Each drawer holds a true half load for guilt-free small washes and fast turnaround of your dishes. Both drawers operate independently so different wash cycles can run simultaneously to accommodate a variety of loads.

QUICK, SANITISE AND EXTRA DRY OPTIONS

The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitise option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.

KNOCK TO PAUSE

These DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher which can be re-started again by using the start/play button.

QUIET PERFORMER

Running at a very low decibel rating, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.

SPECIFICATIONS

Height: 820 – 880mm

Width: 599mm

Depth: 571mm

ACCESSORIES

Contemporary round handle kit	Part number 81645
Cutlery basket	2
Kickstrip
Knife clip and multipurpose clip
Optional handle	513545 D3 front mount fitting kit
Optional stainless steel door kit	81253 Doors DD60D

CAPACITY AND LOADING

Accommodates round plates up to	280mm
Adjustable height, foldable cupracks
Fold down tines
Pitch adjustable tines
Place settings per drawer	6

CONSUMPTION

Energy consumption	54 kWh per 100 cycles
Energy rating	E
Water consumption per cycle	7.8L

CONTROLS

Child lock
Electronic fault/Diagnostic indicator
End of cycle beeps
Energy saving delay start option of up to 12 hours
Internal wash selector
Knock to pause
Rinse aid indicator light

FEATURES

Built-in water softener
Fan assisted drying
Flow through detergent dispenser
Quiet operation
SmartDrive™ technology

PERFORMANCE

Airbourne accoustical noise emission class	B
Noise on standard cycle top drawer	45dBA

POWER REQUIREMENTS

Amperage	8.5A

PRODUCT DIMENSIONS

Depth	571mm
Height	820 – 880mm
Width	599mm

WARRANTY

Parts and labour	5 years

WASH PROGRAMS

Delicate
Eco
Extra Dry
Fast
Heavy
Medium
Number of wash programs	15
Quick
Rinse
Sanitise
Sanitise
Wash modifiers	3

WATER CONNECTION

Water pressure	0.1 Mpa – 1 Mpa

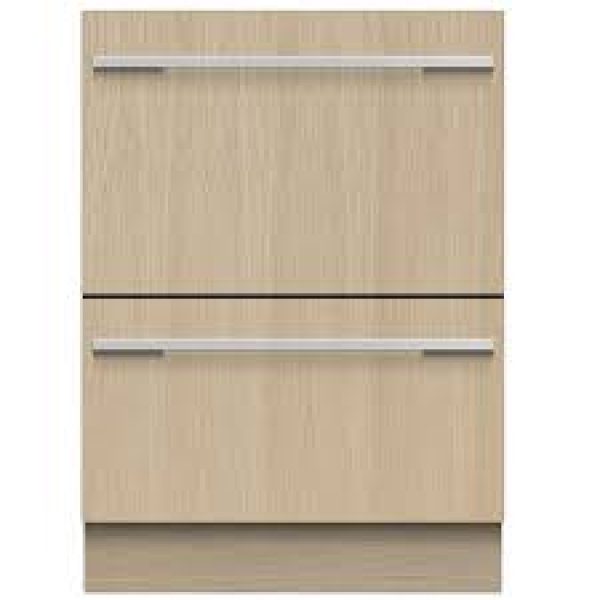

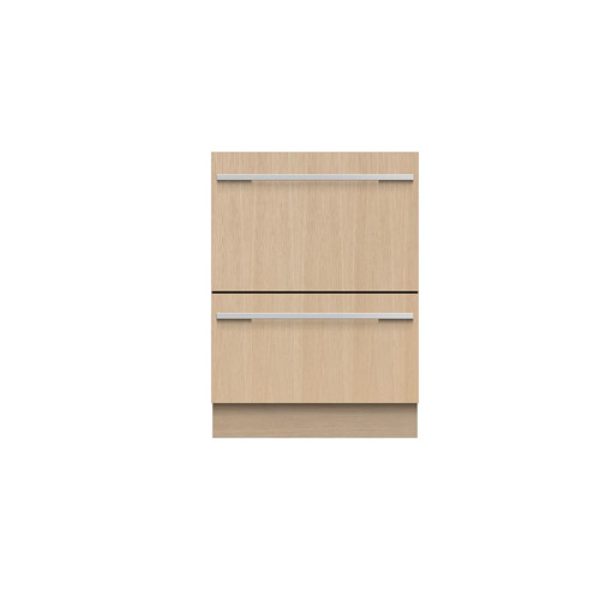

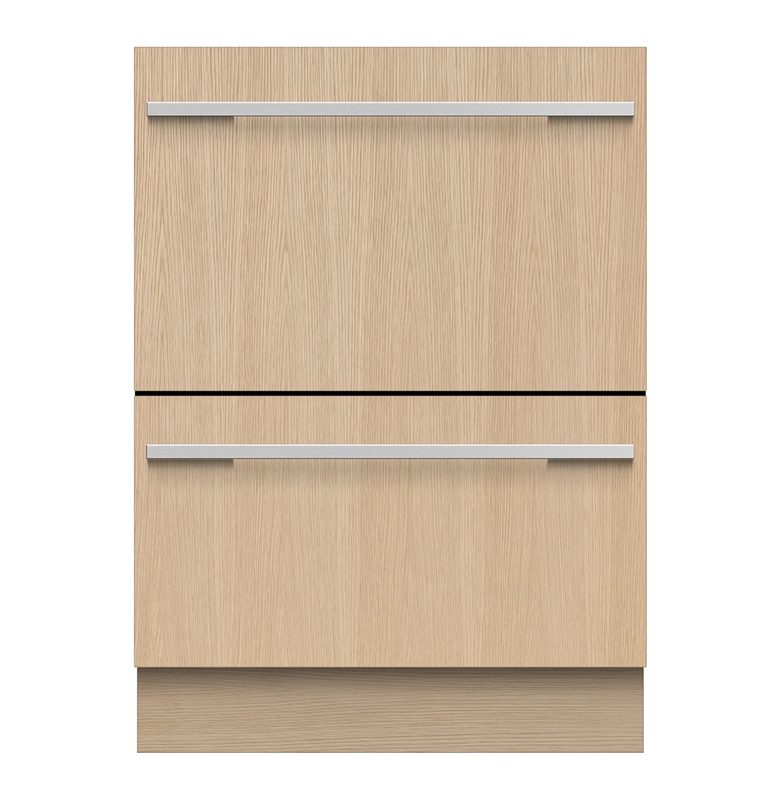

Fisher and Paykel Fully Integrated 2 Drawer Dishwasher

Our price incl. vat
